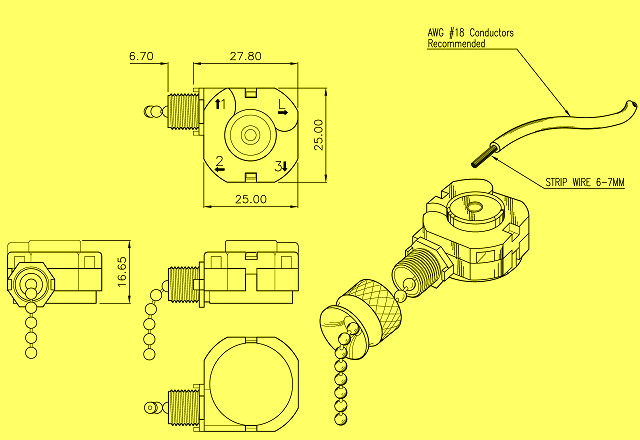

3089B   Speed Control Pull Chain Switch


Model : 3089B
Rating : UL, CSA - 6A 125VAC,
3A 250VAC, Temp. 85°C
Suitable
For		 : UL1015 AWG#18 wire or
UL3321 AWG#18 wire
(Strip wire 6-7mm)
Push wire terminals
Operation Sequence
Position Circuit
1 OFF
2 3-L-1-2
3 3-L-2
4 3-L-1

  E87438 LR68590




Brass Chain
AB
Antique brass		 BK
Pearl Black		 BS
Polish Brass		 CP
Chrome Plated		 BZ
Bronze
NP
Nickel Plated		 ST
Stainless Steel		 SN
Nickel Plated
Stainless Steel		 PN
Pearl Nickel		 MB
Charcoal Black

PW
Painted White
Plastic Chain

BK
Black		 BR
Brown		 WH
White		 YE
Yellow


Screw Nut - Brass
01
Polish Brass		 02
Antique Brass		 03
Nickel Plated		 04
Pearl Black		 05
Nickel Plated
without Grid
06
Straight Barrel
in Polish Brass 		07
Straight Barrel
in Nickel Plated		 08
Ball Shape
in Polish Brass		 09
Ball Shape
in Nickel Plated		 10
Bronze

11
Ball Shape
in Antique Brass		 12
Pearl Nickel 		13
Charcoal Black		 14
Chrome Plated
Screw Nut - Zinc Alloy
31
Polish Brass		 32
Antique Brass		 33
Nickel Plated		 34
Pearl Black		 313
Charcoal Black
