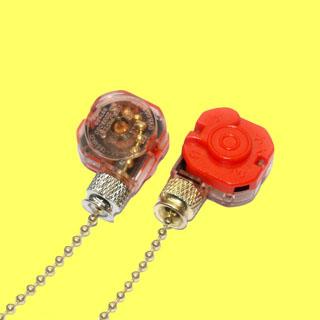

3089R   Speed Control Pull Chain Switch





Model : 3089R
Rating : UL, CSA - 6A 125VAC,
3A 250VAC, Temp. 85°C
Suitable
For
: UL1015 AWG#18 wire or
UL3321 AWG#18 wire
(Strip wire 6-7mm)
Push wire terminals
Operation Sequence
Position Circuit
1 OFF
2 L-1
3 L-2
4 L-3

  E87438 LR68590
