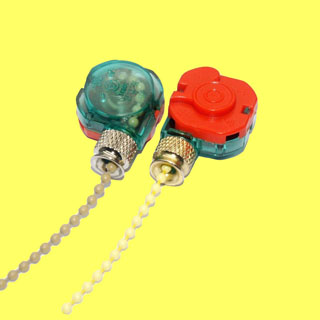

3089TR |
|
Speed Control
Pull Chain Switch |
 |
|
|
|
| |
|
|
|
|
| Model |
: |
3089TR |
| Rating |
: |
TÜV
3(2A) 250VAC, T85 |
Suitable
For |
: |
0.75mm2 wire
(Strip wire 6-7mm) |
| Push wire terminals |
|
| Operation Sequence |
| Position |
Circuit |
| 1 |
OFF |
| 2 |
L-1 |
| 3 |
L-2 |
| 4 |
L-3 |
|
|
|
|
